Sidewalk Sheds and Public Protection

The sidewalk shed, the pipe and plywood tunnel that a New York construction site puts between itself and the street, is the piece of regulation made physical that Michael Stern’s readers walk under every day without seeing it as engineering, and it begins each time with a flatbed at a curb before dawn and a crew unloading posts. Curbed is careful about the word: scaffolding is what climbs the wall, and the thing over the pavement is a sidewalk shed or a sidewalk bridge.¹ This entry tells the shed through the people who make it, order it and take it down.

The crew

What the crew builds has barely changed in decades. Curbed describes the long standing city approved design as steel pipe uprights with cross braces, a corrugated roof, plywood panels painted dark green and little plywood shims to keep the whole thing level, a system that endures because it is cheap and tough, and that is also, in many places, dank, close and unpleasant to walk through.¹ The components arrive as a pile on a flatbed and are bolted together on the sidewalk, which is why a shed can appear overnight.¹ Wikipedia gives the plain purpose, a structure installed over a sidewalk to protect pedestrians from falling debris during construction, meant to be temporary, though some become anything but.²

The site superintendent

On a new building the shed is only the lowest layer of protection. StreetEasy explains the reasoning from the site outward: from demolition to the last fit out, a job lasting two to four years sheds tools, plywood, glass and steel, so the walkways beneath it are covered, and where the sidewalk itself must close the shed pushes into the roadway on a protected lane or pedestrians are sent across the street.³ Conversions add a second layer, a web of scaffold and netting on the facade beside the exterior hoist, because facade work and new windows generate their own falling debris.³ How the hoist and the crane share the one open frontage with the shed is covered by the entry on cranes and hoists.

Figure

The standard shed, part by part

1. 01
   UprightsSteel pipe posts on plywood shims that keep the frame level on a sloping sidewalk.
2. 02
   Cross bracesDiagonal pipes between the posts along the curb, which also block the step from sidewalk to street.
3. 03
   RoofCorrugated metal decking carrying a layer of planks, sized to stop what falls from above.
4. 04
   ParapetPlywood panels painted dark green around the roof edge, the shed's most familiar face.
5. 05
   LightsLED fixtures under the deck, which lately replaced the dim incandescent bulbs.

The inspector on the rope

Most sheds in the city are not in front of construction sites at all. They stand under facades being inspected or repaired. RAND Engineering and Architecture traces the requirement to a death in 1979, when a piece of masonry fell from the seventh floor of a Manhattan building and killed a college student on the sidewalk, which produced a local law requiring the exterior walls of buildings above six storeys to be examined on a cycle, amended since and run from 2013 as the Facade Inspection Safety Program.⁴ The examination is done or overseen by an inspector the Department qualifies for exterior walls, an engineer or architect licensed for seven years or more, who must examine the wall at close range every 60 feet where it faces the street and, every other cycle, open probes into cavity walls to check the ties.⁴

The engineer who orders the shed

The shed is ordered by a classification. CEA Architects lists the three classes: Safe, where the inspector expects no hazard to develop before the next cycle; Safe With a Repair and Maintenance Program, where something will deteriorate unless fixed by a date the inspector sets; and Unsafe, where a hazard exists now or will exist inside a year, at which point the inspector notifies the Department and the owner at once and the owner must install protection, such as a sidewalk shed.⁵ RAND adds the clock: an unsafe finding starts a 90 day repair period, extensions of 90 days are granted while safety measures stand and repairs progress, and the Department often sends its own inspector within a day of the notice.⁴

The owner who keeps it up

Here the maker’s story turns. StreetEasy records what the rules used to reward: renting a shed indefinitely and paying small fines was cheaper than a large facade job, so some owners simply left the shed standing.³ Wikipedia puts the result at around 400 miles of shed in 2023, and notes one Brooklyn building whose scaffolding had stood, on and off, for fourteen years.² Gothamist reported the mayor’s 2026 figures, more than 380 miles of shed over 7,500 blocks, some of it up for more than 15 years, which he attributed to regulations that made it easier to leave a building in disrepair than to fix it.⁶

Figure

The old shed against the new designs

	Standard shed	New designs
Curb side	Cross braced pipe wall	Open, with the external framing minimised
Roof	Flat, with a waterfall at the curb in rain	Several slope up and outward so daylight reaches the pavement and rain runs off
Lightest case	Same full frame for every job	A light gauge frame with netting instead of a hard roof for an emergency
Heaviest case	Sturdy enough for most falling debris	A rigid shed built to catch a dropped pallet of supplies
Support	Always on the sidewalk	One version bolts to the building with no posts at street level

The rule writers

The response came in rules about time. The mayor’s office announced in August 2026 that shed permits, once renewed automatically each year, must now be renewed every 90 days with a report on what repair requires the shed and what progress has been made, and that after 180 days graduated monthly penalties begin, scaled to the shed’s size and age, unless the owner shows real progress.⁷ Gothamist adds the complementary change on the inspection side, that well maintained buildings under 40 years old move from inspections every five years to every twelve, with abbreviated visual checks every three years between.⁶ Curbed notes that the penalties can eventually reach $6,000 a month and that a programme targeting long overdue sheds had already removed 429 of them.¹

The designers

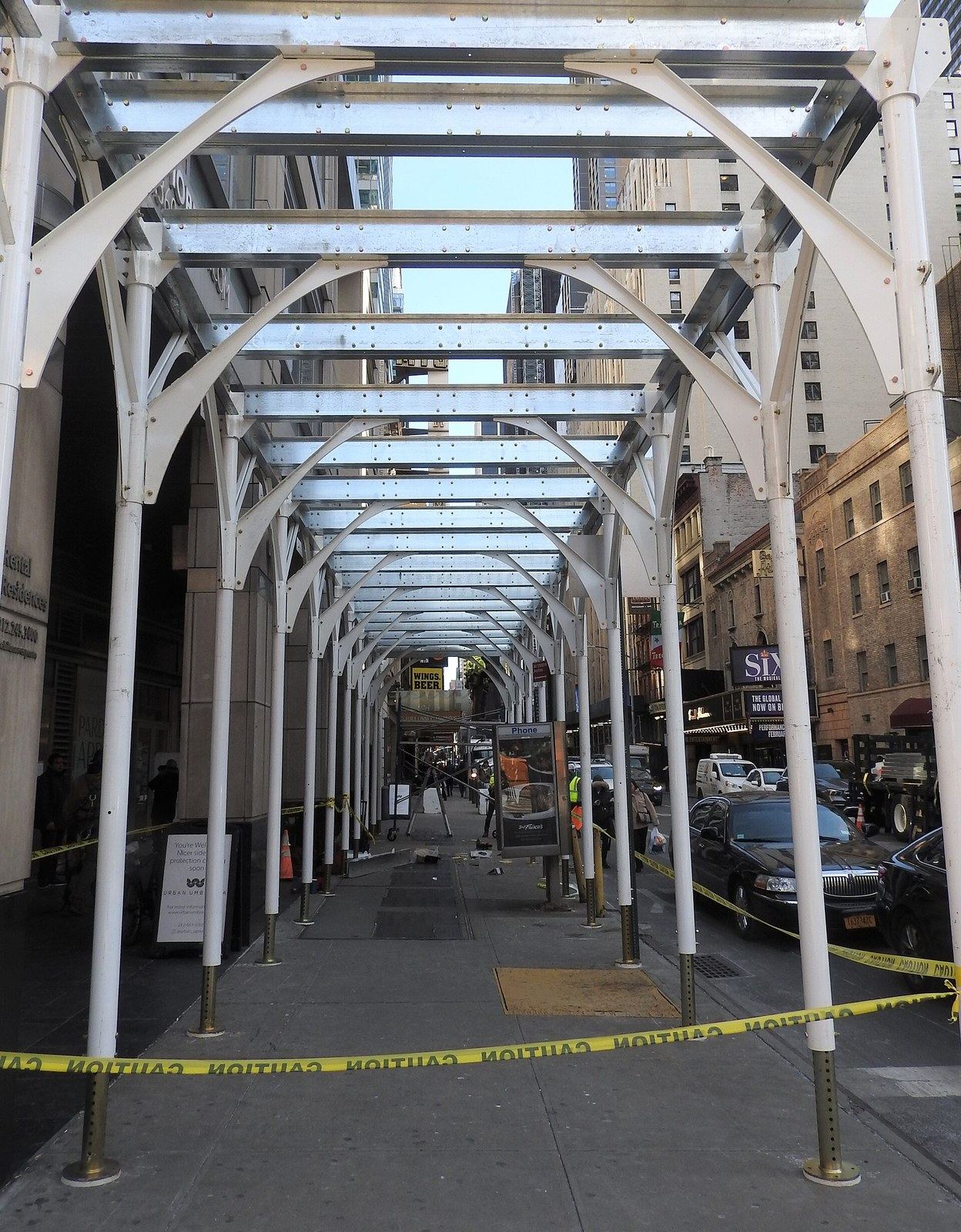

The second response concerned the shed itself. The mayor’s office described six new shed designs developed by Arup and Practice for Architecture and Urbanism, owned by the city and free for any contractor to copy, meant to give more light, visibility and space than the standard frame.⁷ Curbed walks through them: all minimise the external framing so the curb side opens up; one is a light gauge frame with netting rather than a hard roof, meant for the emergency after a brick falls while the owner waits for inspection; another, the Rigid Shed, is built for major projects and can catch a dropped pallet of supplies; another bolts to the building with no street level posts at all; and several slope their roofs up and outward so light reaches the pavement and rain does not sheet off the curb edge.¹ Urban Umbrella, the one alternative that had reached the street before them, with its taller roof and open bays, was in use at only 105 of 8,438 sites and cost roughly double the standard frame.¹

Figure

The rules that moved in 2026

permitted sidewalk sheds standing in the city on August 17, 2026, more than 1,000 fewer than a year before

7,427

the new permit renewal period, each renewal now carrying a report on the repairs under way

90 days

after which graduated monthly penalties begin for a shed with no active work behind it

180 days

the new maximum reach of a shed from a building on campus properties, replacing half the building's height

40 feet

new shed designs by Arup and PAU, owned by the city and free to copy

6

The campus manager

A third change concerned how far a shed reaches. Previously, Gothamist explains, pedestrian protection was required on any walkway within half the height of the building, so a tower could push sheds dozens of feet into shared open space, a maze on housing campuses, hospitals and universities; from August 2026 the reach is capped at 40 feet from the facade regardless of height.⁶ The mayor’s office framed the cap as removing coverage that gave no safety benefit while keeping the protection that does.⁷

The crew again

The shed comes down the way it went up, in a morning, when the facade repair it was protecting the street from is finished and the Department’s release is in hand. The mayor’s office counted 7,427 permitted sheds on August 17, 2026, more than 1,000 fewer than the year before, and Gothamist put the total at nearly 8,000 active sheds, about 1,000 fewer than five years earlier.⁶ What goes on behind the shed while it stands, the probes, the repointing and the replacement of terra cotta, is the subject of what happens to the wall itself, and the rigs that reach the wall without a shed are described under facade access and maintenance. For the crew, the job ends when the last post is loaded and the sidewalk has its sky back.
